Can You Install a Bypass Humidifier on a Horizontally Mounted Attic Furnace?

Preparing Your Home's Air Quality Before Winter Arrives

August is winding down, and as the back-to-school transition begins and your air conditioner finishes its end-of-season cooling marathon, winter is quietly waiting in the wings. As our team at LCS Cooling & Heating helps Indianapolis homeowners with their late-summer pre-winter planning, a question we hear frequently is: can you install a bypass humidifier on a horizontally mounted attic furnace? Upgrading your home's air quality is a common goal before the dry heating season begins, but discovering your HVAC equipment is located in an unconditioned attic can complicate new installations.

Many homeowners assume that the physical layout of their ductwork is the primary barrier to adding whole-home humidification. While the horizontal orientation of your furnace certainly dictates how and where new equipment can be attached, we've found that the real hurdle is the climate and temperature of the space itself. An attic that is not climate-controlled presents unique environmental challenges that standard basement or utility closet installations simply do not face. Navigating these obstacles early in the season ensures your home is ready long before the first freeze hits.

If you are exploring indoor air quality solutions, understanding the specific constraints of your attic setup is the first step toward achieving a comfortable, balanced indoor environment.

The Short Answer: Yes, But Beware the Freezing Risks

The direct answer to the question is yes—you absolutely can install a bypass humidifier on horizontal attic furnace systems. The physical orientation of the furnace simply requires ensuring there is enough clearance and space for the bypass duct to connect the supply and return plenums. Mechanically speaking, a bypass humidifier does not care if the furnace is standing vertically or lying horizontally, as long as the air pressure forces moisture into the airstream.

However, the primary caveat lies in the environment surrounding the unit. Unconditioned attics present severe freezing risks for the required water supply and drain lines. In colder climates, the challenge shifts entirely away from ductwork geometry and focuses heavily on protecting the delicate plumbing that feeds the humidifier. Because the attic is exposed to extreme temperature fluctuations, our technicians will tell you that standard installation practices used for indoor units are entirely insufficient.

Because of the complex plumbing, electrical load requirements, and rigorous freeze-protection protocols necessary for this environment, adding a humidifier to an attic system is never a standard DIY project. Relying on professional furnace installation and heating services ensures that the unit is not only mounted correctly but also safeguarded against catastrophic winter freeze-ups.

Evaluating Space and Airflow for Horizontal Units

Addressing the mechanical and physical constraints of horizontal furnace setups requires careful planning. Bypass humidifiers rely on a pressure differential between the supply and return ducts to move air across the internal water panel. When the furnace fan blows, the higher pressure in the supply duct forces hot air through the bypass tube, over the saturated water panel, and into the lower-pressure return duct.

Horizontal furnaces often sit in cramped, low-clearance attic spaces. This lack of headroom can make routing the standard 6-inch bypass duct highly challenging. When our LCS Cooling & Heating technicians perform a professional assessment, we typically walk through several critical steps to ensure the system will function without restricting the furnace's primary airflow.

1. Measuring physical clearance: There must be enough room not just to mount the humidifier housing, but to allow a technician to open the cover and replace the water panel annually.

2. Mapping airflow direction: The bypass duct must be routed so that air flows smoothly from the supply plenum to the return plenum without fighting the natural aerodynamics of the ductwork.

3. Checking structural support: A humidifier adds weight to the side of the sheet metal plenum, requiring proper reinforcement so the ductwork does not warp or sag over time.

4. Evaluating the return drop: Horizontal systems often have very short return plenums, leaving limited real estate to cut the necessary hole for the bypass connection.

Pressure Differentials in Horizontal Systems

The success of a bypass humidifier hinges entirely on air pressure. In a traditional vertical upflow furnace, the supply air is pushed straight up, and the return air drops straight down, creating a natural, distinct pressure difference. Horizontal layouts, however, sometimes lack the necessary drop or plenum space to create that same strong differential. If the bypass duct is installed too close to the blower motor or in an area of neutral pressure, the air will bypass the water panel entirely, rendering the humidifier useless. Our qualified technicians always measure the static pressure of the ductwork before cutting any holes to ensure the horizontal attic furnace systems can actually drive the humidification process.

The Hidden Danger: Plumbing in Unconditioned Spaces

While the ductwork requires precision, the most significant threat to an attic-mounted humidifier is the plumbing. Water supply lines for humidifiers are typically made of 1/4-inch copper or plastic tubing. Because these lines have an incredibly low thermal mass and hold very little water, they freeze rapidly when exposed to cold air. In the Midwest, where our Indianapolis average winter low temperatures frequently drop into the 20s (°F) or lower, an unprotected water line in an unconditioned attic is a ticking time bomb.

The supply line is only half of the equation. Bypass humidifiers also produce wastewater. As water trickles over the evaporative panel, the excess must drain away. If the drain line freezes, water will quickly back up into the humidifier housing. This leads to severe clogs, overflowing water, and potential ceiling damage in the living space below.

The Problem: Unconditioned attics drop below freezing, turning standing water in small tubes to ice.
The Cause: Standard indoor plumbing practices do not account for freezing ambient temperatures, and improper drainage slopes allow water to pool inside the drain line.
The Solution: Specialized winterization, aggressive slope angles for continuous drainage, and heavily insulated piping.

We frequently see the consequences of poor attic plumbing in the field. Recently, one local homeowner called us after an old, improperly sloped condensate pipe clogged and backed up. Our professional technician had to clear the blockage and completely rebuild the poorly installed piping using proper materials from our truck to ensure consistent, gravity-fed drainage. Without that proper slope, the standing water would have easily frozen during the next cold snap. Partnering with professionals for comprehensive HVAC services is the only way to ensure your attic plumbing is designed to survive the winter.

Professional Safeguards Against Frozen Lines

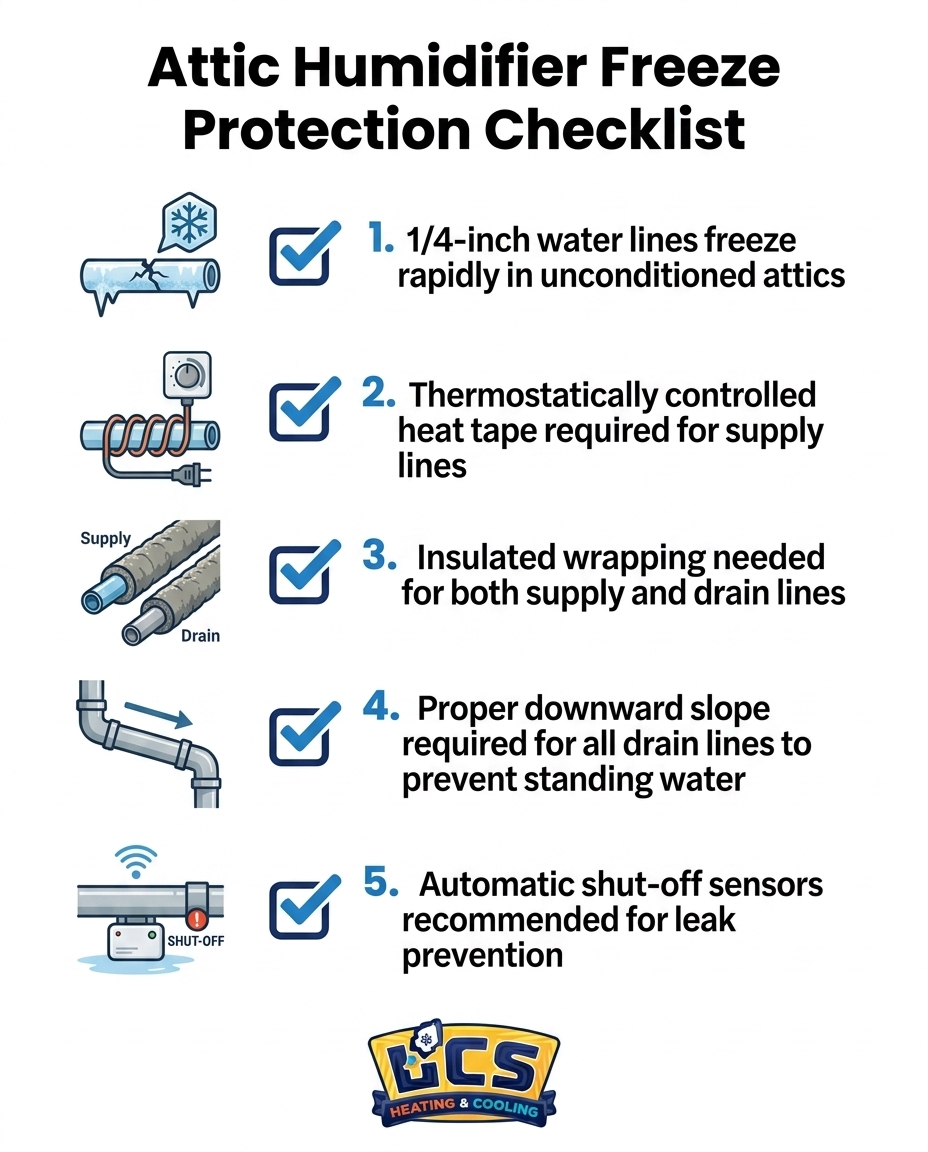

To safely operate an attic humidifier during the harsh winter months, technical mitigations are absolutely required. You cannot simply run a bare plastic tube across the attic floor and hope for the best. Properly protecting Indianapolis homes with unconditioned attics requires a multi-layered approach to freeze prevention.

• Thermostatically controlled heat tape: This specialized electrical heating cable is wrapped directly around the 1/4-inch water supply line. It automatically turns on when the ambient temperature drops near freezing, keeping the water inside the tube in a liquid state.

• High-grade insulation wrapping: Once the heat tape is applied, specialized foam or fiberglass insulation must be wrapped around both the supply and the drain lines. This traps the heat against the pipe and shields it from the freezing attic air.

• Aggressive drainage slopes: Drain lines must be installed with a continuous, steep downward slope. There can be no dips, sags, or horizontal runs where water might pool and freeze before it exits the unconditioned space.

• Automatic shut-off sensors: Smart leak detectors and automatic water shut-off valves can be integrated into the system. If a freeze does occur and a pipe bursts, these sensors immediately cut the water supply to prevent catastrophic flooding through your ceiling.

• Electrical load calculations: Because heat tape draws continuous electrical current, a professional must perform load calculations to ensure the dedicated circuit can handle both the HVAC system and the necessary freeze-protection equipment without tripping breakers.

Our technical expertise at LCS Heating & Cooling in handling complex residential HVAC constraints ensures that every attic-mounted unit we install is equipped with these critical plumbing and freeze-protection safeguards.

Alternatives to Bypass Models for Attic Setups

Sometimes, the physical space constraints or the extreme freezing risks make a traditional bypass unit impractical for horizontal attic furnace systems. If our professionals determine that routing a 6-inch bypass duct will starve your furnace of airflow, or if the plumbing run is too long to safely heat-tape, there are alternative indoor air quality solutions available.

Exploring all of your options during late-summer maintenance prevents rushed, poor decisions in the middle of winter. A professional assessment of your home's overall thermal envelope and IAQ needs will dictate which of the following alternatives makes the most sense for your specific layout.

• Fan-Powered Humidifier — How It Works in an Attic: Mounts directly to the supply plenum and uses its own internal fan to push moisture into the air. — Pros for Horizontal Setups: Eliminates the need for a bulky bypass duct, saving precious physical space in cramped attics. — Cons for Horizontal Setups: Still requires a water supply and drain line in the unconditioned space, meaning freeze protection is mandatory.

• Steam Humidifier (Remote Canister) — How It Works in an Attic: Boils water in a remote canister located in a conditioned space, then pipes pure steam up into the attic ductwork. — Pros for Horizontal Setups: Keeps all liquid water lines in a heated space, virtually eliminating the risk of frozen pipes in the attic. — Cons for Horizontal Setups: Requires a dedicated electrical circuit for the steam generator and careful routing of the steam dispersion tube.

Understanding the differences between these systems is crucial. If you want to know more about why homeowners love whole-house humidifiers, evaluating these alternatives with our team ensures you get the benefits of hydrated air without the liability of frozen pipes.

Frequently Asked Questions About Attic Humidifiers

Can a humidifier freeze in an unconditioned attic?

Yes, the water inside the 1/4-inch supply line and the drain line is highly susceptible to freezing when temperatures drop below 32°F. Because these lines hold very little thermal mass, they will freeze solid much faster than standard household plumbing. In our experience, Indianapolis homes with unconditioned attics are particularly vulnerable during deep winter freezes, making professional mitigation absolutely necessary.

How do you keep a humidifier water line from freezing in the attic?

Our professionals use a combination of thermostatically controlled heat tape and high-grade insulation wrapped tightly around the lines. The heat tape actively warms the water when the ambient temperature drops, while the insulation traps that heat against the pipe. Additionally, ensuring the drain line has a steep, continuous slope prevents water from pooling and freezing before it exits the attic.

Can you put a humidifier on a horizontal furnace?

Yes, provided there is adequate physical clearance for the unit and proper pressure differential between the supply and return plenums. The horizontal orientation of the furnace itself does not prevent a humidifier for furnace installation from working. The main challenge is finding enough space on the low-profile plenums to mount the unit and route the bypass duct without restricting airflow.

Where do you install a humidifier on a horizontal furnace?

It is typically mounted directly on the supply or return plenum, with a bypass duct connecting the two, depending on the specific model and available space. The exact placement is determined by measuring static air pressure to ensure the air will flow correctly across the water panel. A technician from our team will choose the side that offers the most clearance for future maintenance and filter changes.

Do bypass humidifiers work in attics?

They function mechanically the same as they would in a basement, relying on furnace airflow to distribute moisture. However, they require extensive winterization to operate safely in unconditioned spaces. Without heat tape, insulation, and proper drainage slopes, an attic bypass humidifier will quickly freeze and fail during the winter months.

What happens if a humidifier drain line freezes?

Water can back up into the humidifier housing, potentially overflowing and causing severe water damage to the furnace components or the ceiling below. Because bypass humidifiers continuously run water over the evaporator panel, a blocked drain line will cause rapid flooding inside the unit. This is why aggressive downward sloping of the drain line is critical in attic installations.

Are steam humidifiers better for attic installations?

They can be, especially if the steam generator can be located in a conditioned space with only the steam dispersion tube routed into the unconditioned attic ductwork. This setup keeps all liquid water supply and drain lines safely inside the heated envelope of the home. While they require a larger upfront electrical investment, they completely eliminate the risk of frozen pipes in the attic.

Schedule Your Pre-Winter HVAC Assessment

While installing a bypass humidifier on a horizontal attic furnace is entirely possible, it requires expert planning and rigorous freeze-protection protocols. The physical orientation of your ductwork is only half the battle; protecting the delicate water lines from freezing attic temperatures is what ensures long-term reliability and safety.

Late summer is the ideal time to address these upgrades, allowing our technicians to perform the necessary load calculations and plumbing work before the extreme cold sets in. If you are considering adding whole-home humidification to your attic system, late-summer pre-winter planning is your best defense against winter breakdowns. Get a professional evaluation of your attic space from LCS Heating & Cooling today to ensure a safe, freeze-proof installation that will keep your home comfortable all winter long.
